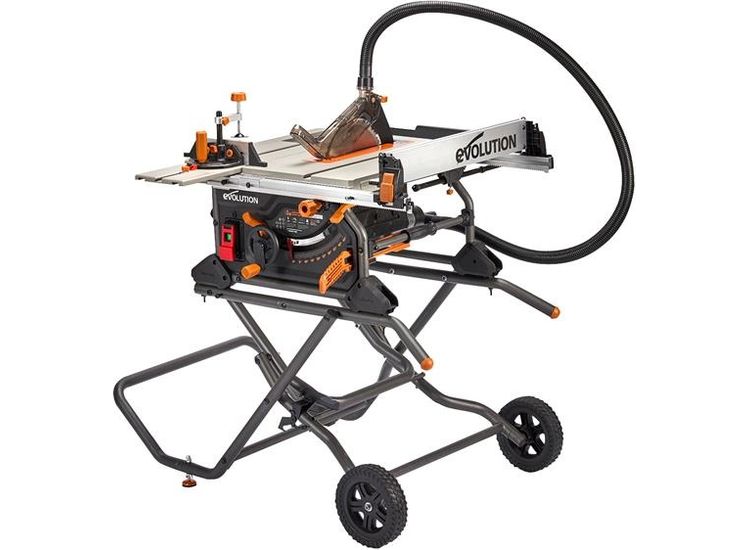

The Evolution R255TBLX+ Portable Jobsite Table Saw is more accurate. A clean sheet design from top to bottom, it features a dual rack & pinion rip-fence for accurate, repeatable cuts. A new gear-driven blade height and bevel adjustment mechanism offers repeatable micro-adjustment. Our patented blade-to-rip-fence parallelism adjustment allows for perfectly aligned cuts in full-size sheets without binding or kickback. The R255TBL+ also features a Metal Throat Plate with corner height adjustment. All this comes together to make the R255TBL+ the most accurate and adjustable table saw we've ever made.
The powerful 1,800W motor features soft-start, electronic blade brake, motor overload protection and a paddle style emergency stop. The blade guard offers improved cut visibility, and the quick release riving knife design features offset angle and lateral adjustment for easier and safer cutting, especially when handling full size boards. The new motor housing offers improved dust extraction , better access for cleaning, and blade swaps are easier than ever before.
The integrated miter sled uses an industry-standard channel profile for compatibility with 3rd party accessories, as well as our own top-clamp equipped miter guide. It offers an 85mm cut depth at 90 degrees and 58mm at 45 degrees. It features a wider, cast table top with integrated outfeed support, able to handle full 8x4 sheets with ease but still weighs less than the RAGE5-S.
This R255TBL Table Saw is more portable. Mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the wheeled stand. Superbly mobile thanks to the included folding stand, equipped with the tubular steel all-terrain wheeled support as standard. Fixed to the table with 4 bolts it gives you the flexibility to run your new table saw as a bench mount or stand mount unit and to swap between the two options in less than a minute. It easily passes straight through a standard width internal door (32in) making it the perfect jobsite saw.
Supplied with: 1 x Folding Wheeled Stand, 1 x Multi-Material TCT Blade 255 x 25.4mm x 24T, 1 x Built In Crosscut Sled, 1 x Blade Guard with Dust Extraction Port, 1 x Dust Extraction Hose & Fittings, 1 x Miter Gauge & Top Clamp, 1 x Outfeed Support, 1 x Adjustable Rip Fence, 1 x Push Stick, 1 x Riving Knife, Blade Changing Spanners and Assorted fixings.
Specifications:
Input Power: 1,800W
Speed No Load: 3,050/min.
Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
Blade Dia. x Bore: 255 x 25.4mm
Max. Depth of Cut: @0°: 85mm, @45°: 58mm
Mild Steel Plate (Max. Thickness): 6mm
Rip Capacity: Right of the blade 650mm, Left of the blade 371mm
Riving Knife Thickness: 1.8mm
Dimensions: (with Leg Assembly) 340 x 965 x 653mm, (without Leg Assembly) 340x 659x 653mm
Max./Min. Table Dimensions: 1200 x 640mm/745 x 640mm
Storage Dimensions: folded with stand (HxDxW) 1110 x 760 x 850mm
Weight: 23.33kg
Dimensions: 740 x 375 x 740
SKU: EVLR255TBLXP
Manufacturer part code: 119-0016
